CarDAQ-Plus®3

Your Complete R2R J2534 Solution!


CarDAQ-Plus 3 (CDP3-KIT-01)

Drew Technologies continues its tradition of providing the most validated J2534 devices on the market. The CarDAQ-Plus®3 is the only pass-thru that offers the following features in a single device.

The CarDAQ-Plus®3 is the next generation Drew Technologies fully supported SAE J2534-1 and J2534-2 device with even more advanced support including: CAN FD, 4 CAN Channels, v05.00 API and DoIP.

CAN FD: Supports Flexible Data Rate CAN.
(being introduced in the near future).

J2534 v05.00 API: The newest version of J2534 to give you the latest in pass-thru technology.

4 CAN Channels: Going beyond the 3 required by select Chrysler/FCA models. CarDAQ-Plus®3 also provides a 4th to meet the needs of future OEM applications.

DoIP: Automotive Ethernet for advanced vehicle communications.

In addition, it features High Speed USB and support for global vehicles. Drew Technologies fully tests our devices for compliance and meet all of today's SAE J2534 standards. OEM's globally trust Drew Technologies and approve our tools for their dealerships as well as their Engineering uses, such as: testing, software development, EOL testing, and more. Consider Drew Technologies for your custom solutions needs too.

For a brief overview of the CarDAQ-Plus®3, download our new Sell Sheet!



Master Bundle (BNDL-CDP3-DL-01)

Master Bundle

Part#: BNDL-CDP3-DL-01

Includes: for light-duty all the way to heavy-duty jobs:
• CarDAQ-Plus® 3 Kit
• DrewLinQ® Standard Kit

Price $2,350

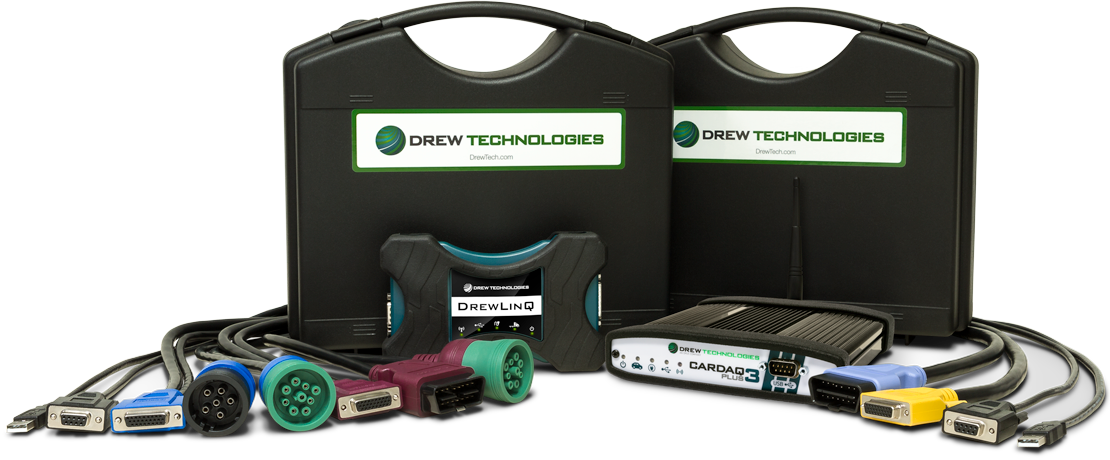

Master Bundle w/ CarDAQ-Plus 3 Bluetooth (BNDL-CDP3-BT-DL-01)

Master Bundle w/ CarDAQ-Plus® 3 Bluetooth

Part#: BNDL-CDP3-BT-DL-01

Includes: for light-duty all the way to heavy-duty jobs:
• CarDAQ-Plus® 3 Bluetooth Kit
• DrewLinQ® Standard Kit

Price $2,550

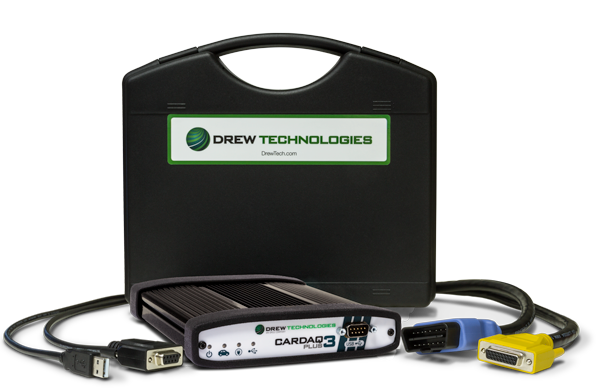

CarDAQ-Plus 3 Kit (CDP3-KIT-01)

CarDAQ-Plus® 3 Kit

Part#: CDP3-KIT-01

Includes: CarDAQ-Plus® 3 device, Vehicle cable, USB cable, and QuickStart Guide

Price $1,780

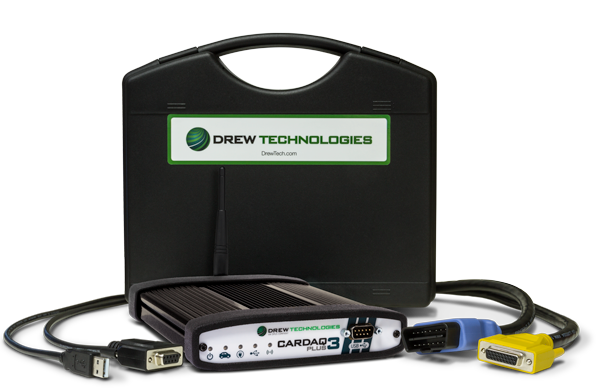

CarDAQ-Plus 3 Bluetooth Kit (CDP3-BT-KIT-01)

CarDAQ-Plus® 3 Bluetooth Kit

Part#: CDP3-BT-KIT-01

Includes: CarDAQ-Plus® 3 device w/ Bluetooth, Vehicle cable, USB cable, and QuickStart Guide

Price $1,980

BMW Cable Kit (BMW-CBL-KIT)

BMW Cable Kit

Part#: BMW-CBL-KIT

Includes: the 20 pin and 7-8 pin adapters for connection to BMW vehicles

Price $80



Additional Product Information

CarDAQ-Plus® 3 Reprogramming:
• All-makes, all-model SAE J2534 reprogramming (OEM Websites, click HERE)
• OEM subscription prices, click HERE
• SAE J2534-1: CarDAQ-Plus® 3 is the most advanced device for reprogramming of ALL OEM with the use of their OEM provided software
• SAE J2534-2: CarDAQ-Plus® 3 offers extra J2534-2 support that expands reprogramming beyond just the Engine/Trans modules for GM, Ford, Chrysler, Toyota, Honda, Audi, VW, BMW, Volvo and more!



J2534 OEM Diagnostics:
• BMW/Mini – ISTA
• FCA – Wi-Tech 2.0
• Ford – Ford J2534 Diagnostic System (FJDS) & Ford Diagnostic and Repair System (FDRS)
• GM – Global Diagnostic System (GDS2)
• GM – Tech2Win (PC-based Tech2 software)
• Honda – Honda Diagnostic System (i-HDS)
• Jaguar/LandRover – Integrated Diagnostic Software (IDS) & Symptom-Driven Diagnostics (SDD)
• Mercedes-Benz – XENTRY J2534 Pass-Thru
• Mistubishi – Multi-Use Tester III Special Edition (MUT3–SE)
• Nissan – Consult III Plus R2R
• Subaru – Subaru Select Monitor 4 (SSM4)
• Toyota – TechStream
• VW/Audi (VAG) – Offboard Diagnostic Information System (ODIS)
• Volvo – Volvo Information and Diagnostics for Aftersales (VIDA)



Vehicle Security Professionals:
• Technicians and Locksmiths use the CarDAQ-Plus® 3 for Security Key systems/reprogramming on all vehicle makes supported by the OEM and through the NASTF SDRM model.
• Click HERE to learn more and register.



Technical Support:
• J2534 Toolbox 3 - Your personal assistant to help you thru the process, including: videos, walk through help guides, FAQ's, and other online support.
• Free, live telephone and email support from 8:30am - 5:30pm EST for all of our Drew Technologies products.

Product Specifications

Bus Protocols:
• CAN Bus (Capable of CAN FD, ISO 15765, GMLAN, J1939, and ISO14229)
• 3 CAN channels (FD CAN, Dual Wire)
• 1 Single wire CAN
• Ford SCP (J1850PWM)
• GM Class2 (J1850VPW)
• KWP2000 (ISO9141/14230)>
• Chrysler SCI (J2610)



PC Interface:
• USB version 1.1 or higher



Other Information:
• Compliant to SAE J2534 (Feb 2002) and SAE J2534-2 (Dec 2004)
• Compliant to ISO 22900-11MVCI physical layer
• Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14, or Aux
• Ground pins 9, 12, or 15



Operating System Compatibility:
• Supports Windows Vista (32/64-bit), and Windows 7 (32/64-bit)), Windows 8 (32/644-bit), Windows 10 (32/64-bit).
• Consult OE website for their PC requirements



Product Specifications:
• Operating voltage: 7 – 36 Volts
• Dimensions (approx.): 6.5"D x 6"W x 1.5"H
• Operating Temperature: Commercial Range (0 C to +70 C)



For more information, contact our Sales team at 877.888.2534 (option 2) or email sales@drewtech.com.
Office hours are 8:30 - 6:30 EST Monday - Friday.
