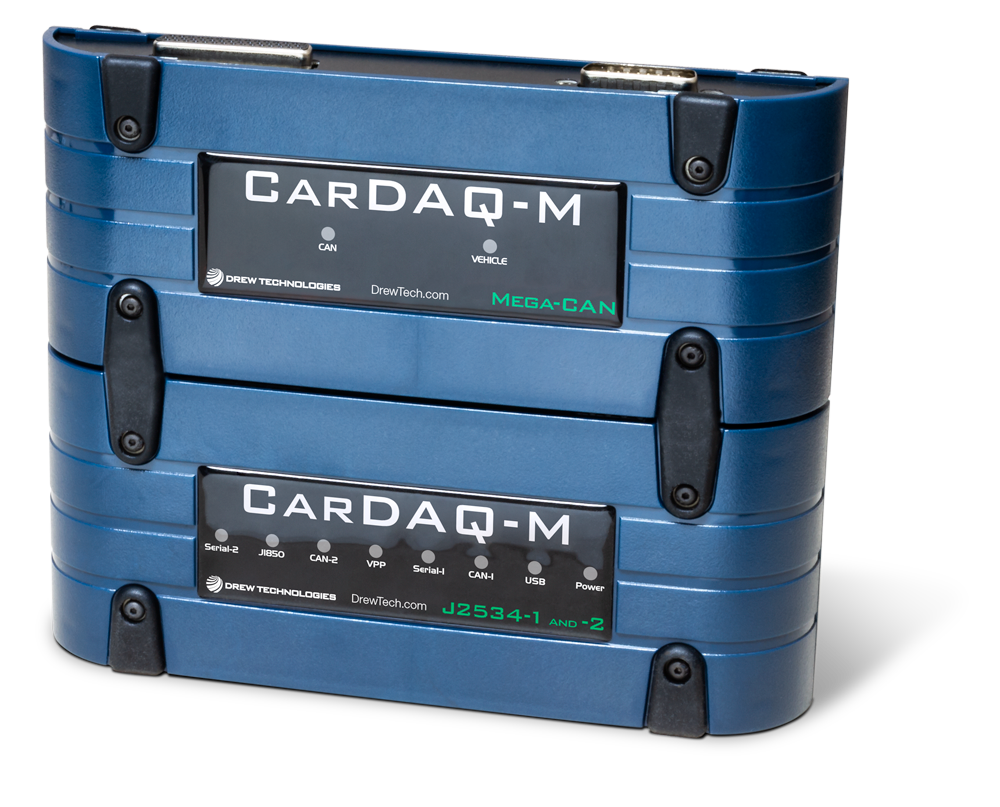

CarDAQ‑M®‑MC



To meet today's vehicle requirements, we now combine the original CarDAQ‑M® with the Mega‑CAN Add‑on Module!

OEM's globally trust Drew Technologies' CarDAQ‑M® for our tested and proven SAE J2534 products. They are regularly used for testing, software development, EOL testing and more. Cost effective and timely, Drew Technologies can assist, consult and work through even the most difficult challenges with you. The CarDAQ‑M® is a one-of-a-kind, evolutionary, modular J2534 tool that can easily be upgraded as technology changes. In addition to the J2534‑1 and J2534‑2 module, the Mega K‑Line expansion module is also available. Consider Drew Technologies for your custom solutions needs too!

For more details download the CarDAQ‑M®‑MC Sell Sheet.

CarDAQ‑M®‑MC Combo Kit

Part#: CDM‑CAN‑COMBO‑KIT

CarDAQ‑M® device, CarDAQ‑M® Mega‑CAN Module, Vehicle cable, USB cable, and Quick Start Guide.

Price: $2,150

Optional BMW Cable Kit — Includes the 20‑pin and 7‑ to 8‑pin adapters for connection to BMW vehicles. Part#: BMW‑CBL‑KIT (Add $80.00)

Optional Mega‑K Add‑on Module. Adds one (1) K‑/L‑line on any OBD pin for future vehicles. (Add $399.00)

If you're an existing CarDAQ–M® owner:

Click the product below that matches your unit for to order the Add-on Module(s) necessary to have complete coverage for existing FCA vehicles.

×

You need to ADD this

CarDAQ‑M® Mega‑CAN Add‑on Module *

Part#: CDM‑Mega‑CAN

Adds one (1) CAN Channel for future vehicles. R2R FCA Required!

Price: $399.00

To get this

×

You need to ADD this

CarDAQ‑M® Mega‑CAN Add‑on Module *

Part#: CDM‑Mega‑CAN

Adds one (1) CAN Channel for future vehicles. R2R FCA Required!

Price: $399.00

And ADD this

CarDAQ‑M® FT Mega‑CAN Add‑on Module *

Part#: CDM‑FT-Mega-CAN

FT (Fault Tolerant) Add‑on Module

Price: $399.00

To get this for complete coverage

[CDM-MC 4-unit image]

* Vehicles that Require the Mega‑CAN

2015 Jeep Renegade/ Fiat 500x
2016 Jeep Renegade/ Fiat 500x
2017 Jeep Renegade/ Fiat 500x/ Fiat Spider/ The All‑New Jeep Compass/ Alfa Romeo Giulia
2018 All North American FCA Vehicles

Additional Information

CarDAQ‑M® Reprogramming:

CarDAQ‑M® is a high performance J2534‑1 product for reprogramming. Use the OEM's software to do J2534 reprogramming with ALL makes

CarDAQ‑M® offers extra J2534‑2 support that expands reprogramming beyond just Engine / Trans support for Ford, GM, Toyota, Volvo, BMW, and some others

• Technicians can use CarDAQ‑M® for Security Key systems / programming on Ford, GM, and Toyota vehicles.

J2534 OEM Diagnostics:

• Using the OEM's own software, CarDAQ‑M® can do factory diagnostics with BMW ISTA, GM GDS2 & Tech2Win, Honda HDS, Toyota Techstream, Volkswagen / Audi ODIS and Volvo VIDA

• As J2534 continues to grow, the number of OEM’s offering a factory diagnostic solution will also grow.

Technical Support:

DrewTech offers free telephone and email support for all of its J2534 products. When you need help, call on our experts that use and support reprogramming every day

• In addition to Support, DrewTech offers its users videos, FAQs, support aids, and other online technical support thru the J2534 ToolBox 3 included with each CarDAQ‑M®, free for the life of the tool!

Specifications

Bus Protocols:

• CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)

• 2nd CAN (Dual or Single Wire)

• Ford SCP (J1850PWM)

• GM Class2 (J1850VPW)

• KWP2000 (ISO9141/14230)

• Chrysler SCI (J2610)

• And more!

PC Interface:

• USB version 1.1 or higher

Other Information:

• Compliant to SAE J25344 (Feb 2002) and SAE J2534-11 (Dec 2004)

• Compliant to ISO 22900-11MVCI physical layer

• Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14, or Aux

• Ground pins 9

Operating System Compatibility:

• Supports Windows Vista (32/64-bit), and Windows 7 (32/64-bit), Windows 8 (32/64-bit), Windows 10 (32/64-bit).

• Consult OE website for their PC requirements

Product Specifications:

• Operating voltage: 7 – 26 Volts

• Size: 1.25"H × 7.5"D × 5.25"W

• Operating Temperature: Commercial Range (0°C to +70°C)

• ISO22900 Compliant for GM's Tech2Win software

For more information, contact our Sales team at 877.888.2534 (option 2) or email sales@drewtech.com.
Office hours are 8:30 – 6:30 ET Monday – Friday.
